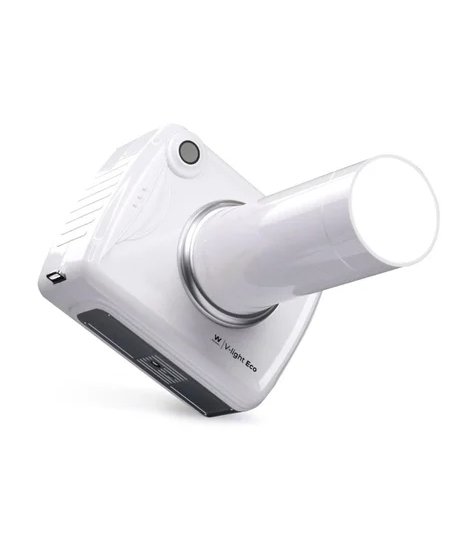

Functional Explanation: Status Display on the LED:

LED color changing: Unit status display

Off ⇒ Turn off

Green ⇒ Standby for shot

Yellow ⇒ Exposing X-ray

Red ⇒ Unit error

X-ray EXPOSURE button:

It makes use of X-ray EXPOSURE.

If you press the button 2 seconds more, it will expose for the set time.

If you release the button before 2 seconds, it occurs a unit error.

X-ray Exposure cone:

We made the inside of the cone with lead, it prevents from exposing the X-ray to the user.

Hand strap ring:

The top and bottom rings are connected with a hand strap.

Necklace strap ring:

It is for connecting with the necklace strap

Big/Small size option:

Press the key to show the size option on the screen.

Power ON /OFF button:

It is a button for turning on (or turning off) the unit.

Changing exposure time up (+):

When presses the button, the exposure time will be increased.

Changing exposure time down (-):

When presses the button, the exposure time will be decreased.

User's MODE button:

If the user wants to change the set item, press the button and you can enter the set item area.

Saving exposure time:

If you press the button 2 seconds more, the exposure time is stored.

Charging connector:

The connector is for the purpose of charging the battery.

Hand Switch connector:

The connector is for the purpose of connecting with a hand switch.

Tooth type of exposure object:

They are buttons for selecting tooth of the exposure object.

LCD screen:

It is displayed the unit's status and information.Key Specifications:-

Main body:

1. X-ray generator

Tube Voltage 60 kV (Fixed)

Tube current 2 mA (Fixed)

2. X-ray Control device

2. X-ray Control device

Exposure time 0.01 - 2.00 sec (Manual 56 steps)
